2)
Machine type:
Multi-stage axially split centrifugal pump – “back-to-back” execution.
Application:
Pump in process or petrochemical industry.
Project extent:

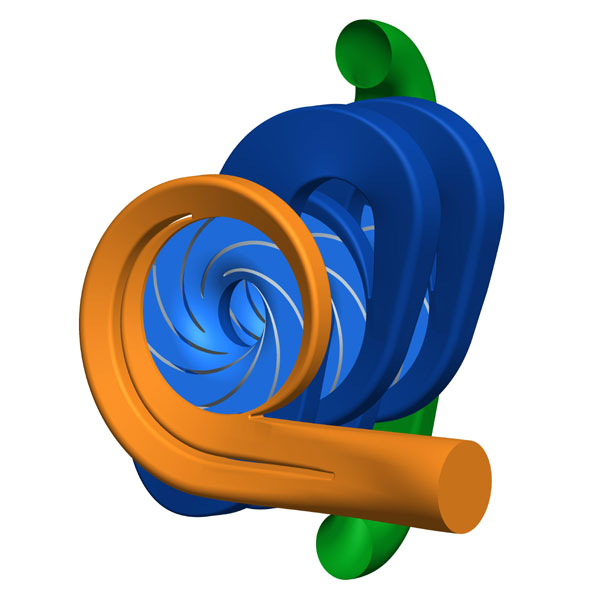

Hydraulic design of the whole pump.

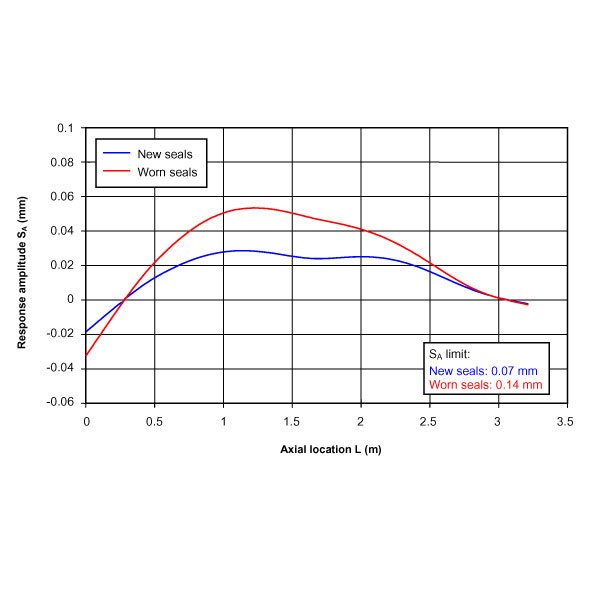

Checking of rotordynamic characteristics.
Main goals:
Achieve a competitive pump efficiency with stable Q-H characteristic and high dimensionless pressure number PSI.
Minimize outer dimensions and consequently the pump weight.
Gallery
