1) Pumping station in a district heating system
2) Pumping station in a water supply system



1)
Hydraulic system:
Pumping station in a district heating system.

Project extent:
Determination of operation plan for a group of pumps for all possible combinations of flow rates and suction tank pressures.

Main goal:
Reduce energy consumption in the pumping station.

Gallery

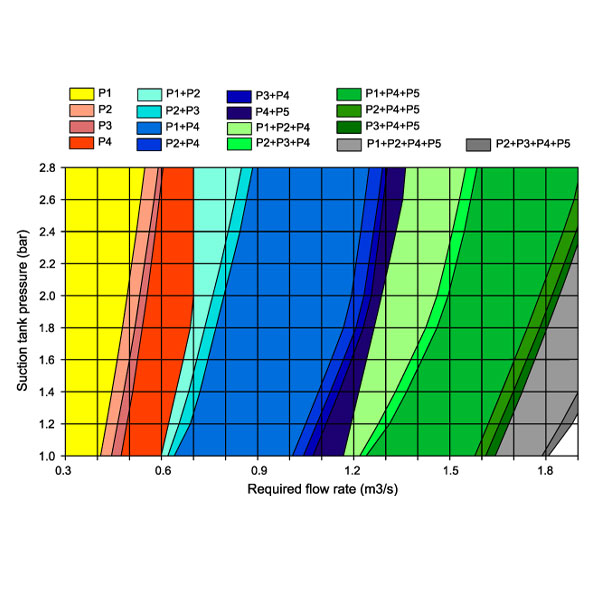

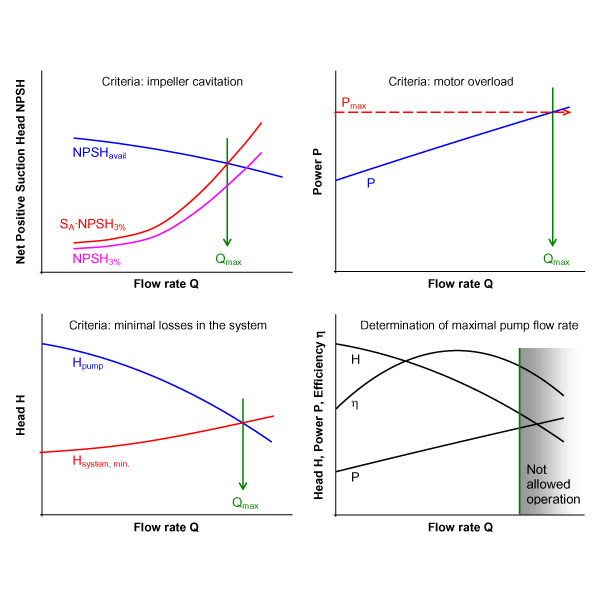

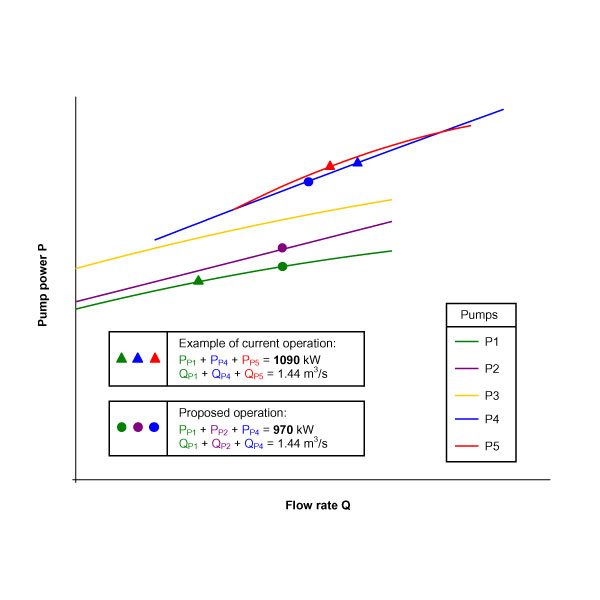

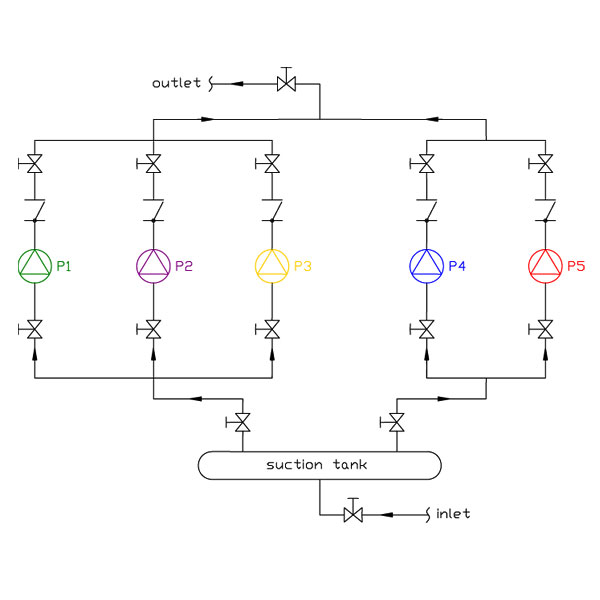

Schematic drawing of the pumping station Determination of the pump operating range: example of maximal flow rate determination Operating plan Operation according to suggested plan reduces the energy consumption for 11%
